Seawater Desalination RO Membrane Elements (JSW) Series
JOZZON JSW Series Seawater RO Membrane Elements are engineered for seawater desalination and high-salinity water treatment, combining high salt rejection, stable water production, and optimized operating performance for demanding industrial applications.
High-Rejection Seawater RO Membranes for Desalination and High-Salinity Water Treatment
JSW series seawater desalination RO membranes utilizes world-leading composite membrane coating technology and an optimized polysulfone support layer structure, significantly enhancing the membrane’s compressive strength and ensuring the density of the desalination layer and the overall lifespan of the membrane.
Seawater reverse osmosis membranes combine high desalination rates with low energy consumption, featuring stable performance and consistent water production. They are primarily used in seawater desalination, wastewater reuse and near-zero discharge treatment of high-salt wastewater, and material concentration.
The series covers multiple membrane configurations for different system capacities and performance requirements, including high-rejection, low-energy, and high-flow options.
Why Choose JOZZON Seawater RO Membrane?
JSW Series membranes are developed for demanding seawater and high-salinity applications, combining high desalination performance with optimized membrane structure, stable operation, and proven project experience.
1. Top Core Performance Indicators
The product’s desalination rate can reach above 99.85%, and the water flux exceeds 50L/（m²· h），the filtration accuracy reaches the international top level, capable of efficiently intercepting heavy metal ions, microorganisms, and salts.
2. Optimized Membrane Structure for Stable Performance
An advanced composite membrane coating and optimized polysulfone support layer improve membrane mechanical strength while maintaining the integrity of the desalination layer. The resulting structure supports stable water production and long-term membrane performance.
3. Multiple Configurations for Different System Requirements
The JSW Series includes multiple configurations designed to address different system priorities, including ultra-high desalination, lower energy consumption, and higher water production. This allows membrane selection to be matched to feed water conditions, system capacity, and permeate quality requirements.
4. Integrated Domestic Manufacturing and Supply Capability
JOZZON has established domestic production capabilities covering key membrane materials and membrane element manufacturing. This integrated supply chain helps improve production control, supply stability, and cost competitiveness for large-scale water treatment projects.
5. Technology Backed by R&D and Application Experience
JOZZON’s membrane technology originates from the National Space Science Center of the Chinese Academy of Sciences, providing a strong foundation in membrane material research and engineering development. The technology has been further developed for industrial water treatment and membrane manufacturing applications.
6. Proven Applications in China and International Markets
JOZZON membrane technologies have been applied in projects across China and international markets, including Kuwait, Kazakhstan, Niger, and Chad. Application experience covers produced water, condensate polishing, demineralized water, full-plant membrane systems, and other demanding water treatment processes.
JSW Seawater RO Membrane Series
JOZZON offers multiple Seawater RO Membrane configurations to balance salt rejection, water production, energy consumption, and system requirements.
|
Model |
Effective Membrane Area ft2 (m2) |
Stable Desalination Rate (%) |
Minimum Desalination Rate (%) |
Effective Membrane Area ft2 |
Feed Spacer Width |
|---|---|---|---|---|---|
|
JSW-8040HR 400 |
6000(22.7) |
99.85 |
99.75 |
400(37) |
28 |
|
JSW-8040HRLE 400 |
6000(22.7) |
99.85 |
99.75 |
400(37) |
34 |
|
JSW-8040HR 440 |
6600(25.0) |
99.85 |
99.75 |
440(41) |
28 |
|
JSW-8040HRLE 400 |
7500(28.4) |
99.80 |
99.70 |
400(37) |
28 |
|
JSW-8040HRLE 400-34 |
7500(28.4) |
99.80 |
99.70 |
400(37) |
34 |
|
JSW-8040HRLE 440 |
8000(30.3) |
99.80 |
99.70 |
440(41) |
28 |
|
JSW-8040XLE 400 |
9000(34.1) |
99.80 |
99.70 |
400(37) |
28 |
|
JSW-8040XLE 400-34 |
9000(34.1) |
99.80 |
99.70 |
400(37) |
34 |
|
JSW-8040XLE 440 |
9900(37.5) |
99.80 |
99.70 |
440(41) |
28 |
|
JSW-FR 400-LD |
7500(28.4) |
99.80 |
99.70 |
400(37) |
34-LD |
|
JSW-4040 |
1800(6.8) |
99.8 |
99.6 |
85(7.9) |
28 |
|
JSW-XLE 4040 |
2100(7.9) |
99.7 |
99.5 |
85(7.9) |
28 |
|
JSW-4021 |
700(2.7) |
99.7 |
99.5 |
36(3.3) |
28 |
|
JSW-2540 |
500(1.9) |
99.7 |
99.5 |
28(2.6) |
28 |
JSW-8040HR: Ultra-high desalination, excellent durability
JSW-8040HRLE: High desalination, low energy consumption
JSW-8040XLE: High flow rate, extremely low energy consumption
Extreme Usage Conditions
| Maximum Operating Pressure | 1000psi (6.9 MPa) |
| Maximum Influent Flow Rate | 75gpm (17 m³/h) |
| Maximum Inlet Water Temperature | 45℃ |
| Maximum Influent SDI15 | 5 |
| Influent Free Chlorine Concentration | < 0.1 ppm |
| Influent ph Range During Continuous Operation | 2～12 |
| ph Range of Influent During Chemical Cleaning (Short-term 30-minute Period) | 1～13 |
| Maximum Pressure Drop of a Single Membrane Element | 15psi (0.1Mpa) |
Test Conditions
| Test Pressure | 800psi (5.5Mpa) |
| Test Solution Temperature | 25℃ |
| Test Solution Concentration (NaCl) | 32800ppm |
| Test Solution ph Value | 7.5 |
| Membrane Element Recovery Rate | 8% |

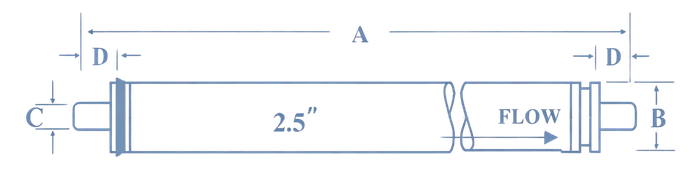

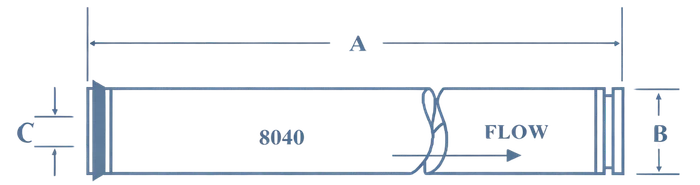

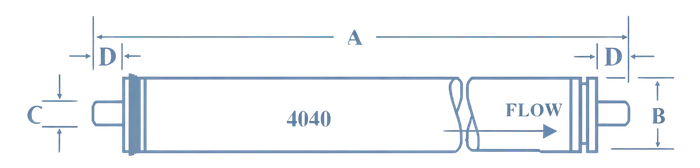

Membrane Element Size
All units shown in the diagram are millimeters (inches).
2521: A=533.4mm (21″), B=61.0mm (2.4″), C=19.1mm (0.75″), D=30.2mm (1.19″)
