8-inch Low-pressure High Rejection Membrane Elements
JOZZON's 8-inch low-pressure membrane elements deliver 99%-99.5% salt rejection for large-scale systems requiring superior water quality. Featuring a rugged fiberglass wound shell, these elements offer excellent pressure resistance and long-term reliability.
8-inch Low Pressure RO Membrane for High-Quality Water Treatment
JOZZON’s 8-inch low-pressure high-rejection RO membrane elements, achieving 99%-99.5% salt rejection, are engineered for large-scale commercial and industrial applications where permeate water quality is critical. From industrial boiler feedwater treatment to municipal drinking water advanced treatment and pharmaceutical water systems, these elements can be flexibly configured to meet various requirements, including high desalination, stable long-term operation, or maximum water recovery.
All elements feature a rugged fiberglass wound shell, offering better pressure resistance than traditional alternatives. This robust construction prevents membrane telescoping under fluctuating operating conditions, delivers a longer service life with fewer failure risks, and maintains consistent rejection performance even in multi-element series configurations. The high rejection rate significantly reduces downstream treatment burden, extending the regeneration cycles of DI or EDI systems and lowering overall operating costs.
Whether you are designing a large-scale industrial water plant, a municipal water treatment facility, or a high-purity water system for power generation, JOZZON’s 8-inch high-rejection low-pressure reverse osmosis membrane elements provide the perfect balance of water quality, durability, and energy efficiency.
Why Choose JOZZON 8-inch Low Pressure RO Membranes
1. High Water Flux
Optimized membrane structure and hydrophilic modification deliver higher flow at same pressure, reducing membrane count and initial investment.
2. Excellent Salt Rejection
99%-99.5% salt rejection effectively removes salts and contaminants, ensuring permeate quality and extending downstream system regeneration cycles.
3. Reduced Energy Consumption
Low-pressure drop design and high-hydrophilicity materials lower operating pressure by 15-30%, cutting electricity costs and enabling green production.
4. Stable Long-Term Performance
Excellent resistance to chemical degradation and compaction ensures slow flux decline, with a 3-5+ year service life and fewer cleaning/replacement needs.
5. Wide Feed Water Compatibility
Fouling-resistant, wide-channel design adapts to various water types (groundwater, reclaimed water, etc.), resisting fouling and reducing pretreatment requirements.

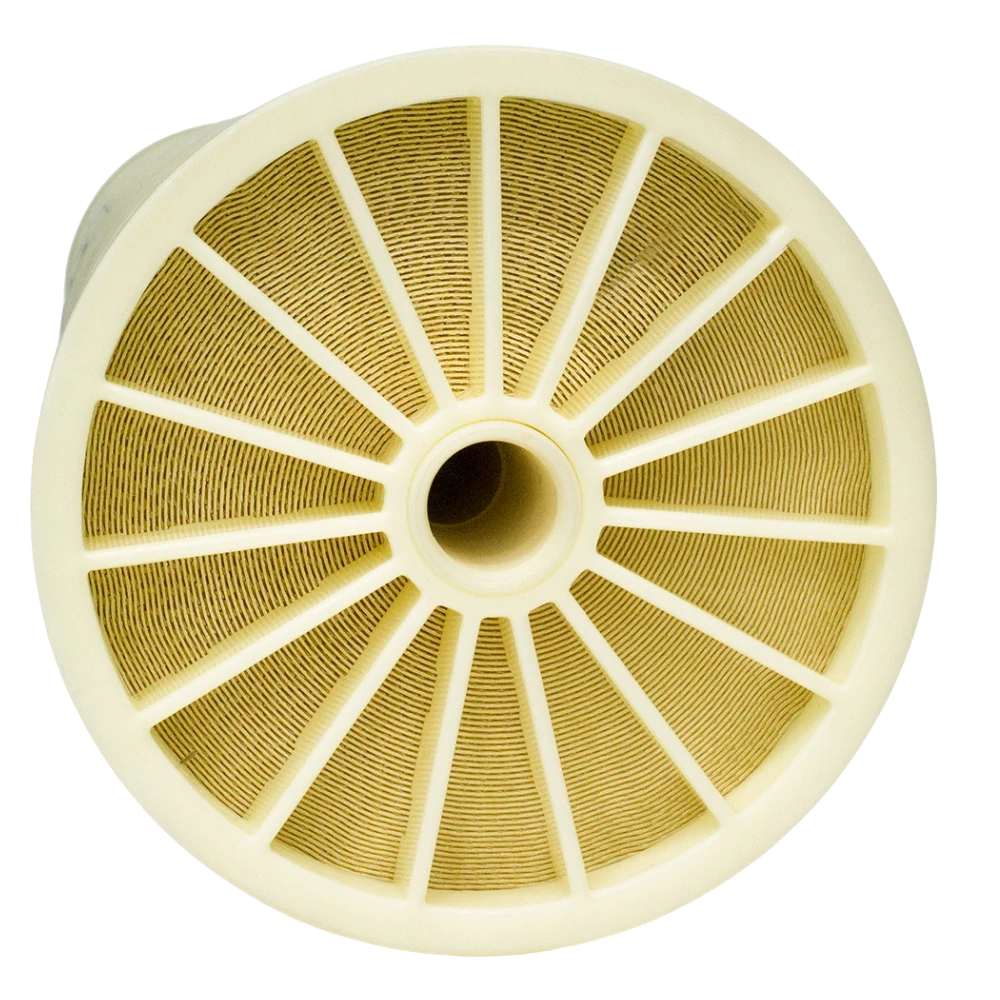

6. Easy System Integration
Standard industrial dimensions compatible with mainstream membrane housings and pipes enable quick drop-in replacement, short commissioning time, and easy maintenance.
Available Models
|
Membrane Element Model |
Effective Membrane Area ft2 (m2) |
Water Production Flow Rate GPD (mΒ³/d) |
Stable Desalination Rate (%) |
Minimum Desalination Rate (%) |
|---|---|---|---|---|
| JRW-8040-400-HR |
400 (37.2) |
11500 (43.6) |
99.5 |
99.0 |
Extreme Usage Conditions
| Maximum Operating Pressure | 600psi (4.14 MPa) |
| Maximum Influent Flow Rate | 75gpm (17 mΒ³/h) |
| Maximum Inlet Water Temperature | 45β |
| Maximum Influent SDI15 | 5 |
| Influent Free Chlorine Concentration | < 0.1 ppm |
| Influent ph Range During Continuous Operation | 2ο½12 |
|
ph Range of Influent During Chemical Cleaning (Short-term 30-minute Period) |
1ο½13 |
| Maximum Pressure Drop of a Single Membrane Element | 15psi (0.1Mpa) |
Test Conditions
| Test Pressure | 150psi (1.03Mpa) |
| Test Solution Temperature | 25β |
| Test Solution Concentration (NaCl) | 1500ppm |
| Test Solution ph Value | 7.5 |
| Single Membrane Element Recovery Rate | 15% |
Membrane Element Size
The units in the diagram are millimeters (inches).
