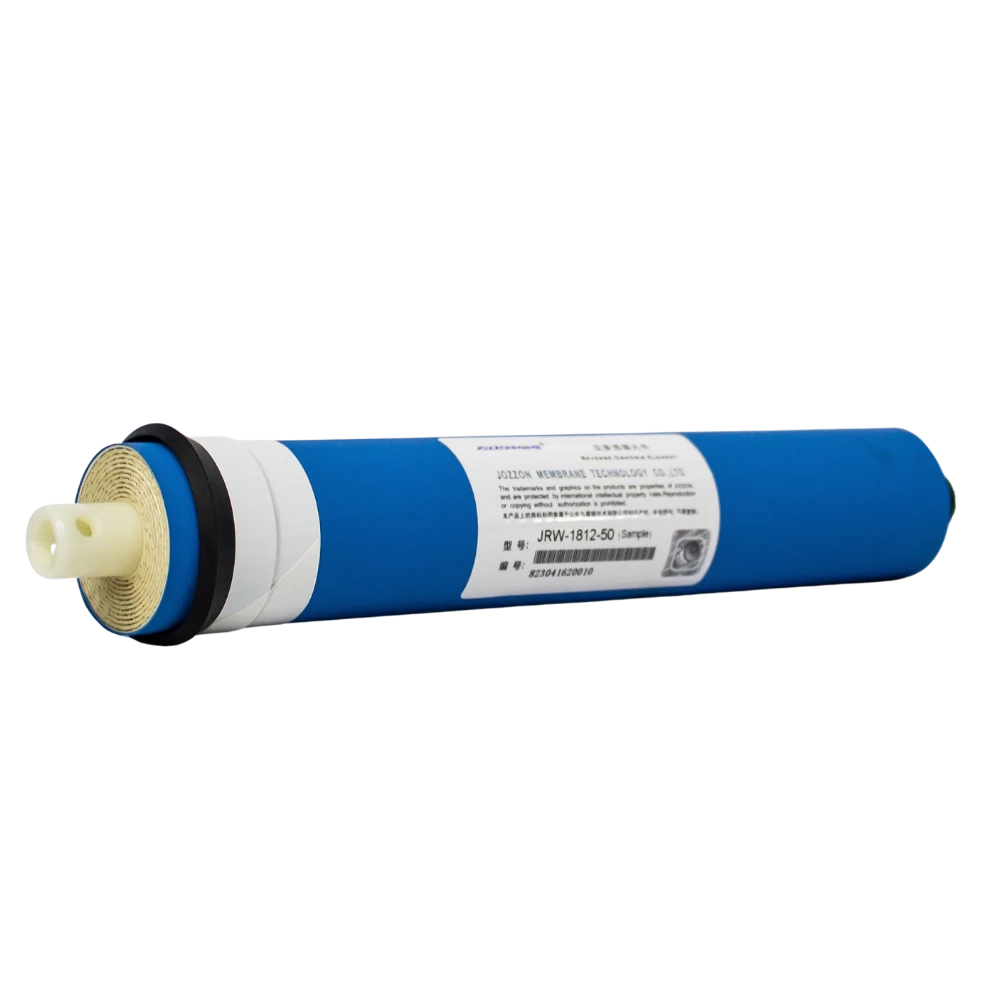

JRW-1812 Series Domestic Reverse Osmosis Membrane Elements
JOZZON's JRW-1812 series residential membrane elements are designed for under-sink RO systems, delivering clean, safe drinking water. Featuring a compact, high-strength construction, these elements offer reliable performance, good salt rejection, and stable water production.
Product Overview
JOZZON's JRW-1812 series residential membrane elements are engineered to meet the daily drinking water needs of households and small offices. From under-sink RO systems to countertop purifiers and point-of-use dispensers, these elements can be easily integrated into various system designs, delivering high-quality purified water with consistent performance.
Featuring a compact, high-strength construction, JOZZON's JRW-1812 series elements offer reliable sealing and stable operation. The advanced membrane chemistry provides good salt rejection and efficient removal of contaminants, including heavy metals, bacteria, and dissolved solids, ensuring safe, great-tasting drinking water for your family. The standard 1812 size allows for easy replacement and broad compatibility with major residential RO systems.
Whether you are designing a new under-sink RO system, maintaining an existing unit, or upgrading a home water purifier, JOZZON's JRW-1812 series residential elements provide the perfect balance of compact size, reliable quality, and affordable performance.
Features & Benefit
1.Compact Design with Broad Compatibility
JOZZON residential membrane elements (standard sizes such as 1812, 2012) feature a compact footprint, allowing easy integration into under-sink, countertop, and wall-mounted water purifiers. They are compatible with mainstream filter housings and fittings, simplifying system design and replacement.
2.Safe & Hygienic – Compliant with Drinking Water Standards
Manufactured with food-grade materials and free from BPA or other harmful substances, JOZZON membranes ensure no secondary contamination of the treated water. All products meet strict national drinking water hygiene regulations.
3.Fouling Resistance & Easy Cleanability
The optimized membrane surface charge and enhanced hydrophilicity provide good fouling resistance. Regular flushing or soaking cleaning can effectively restore water flux, extending service life and reducing replacement frequency for end users.

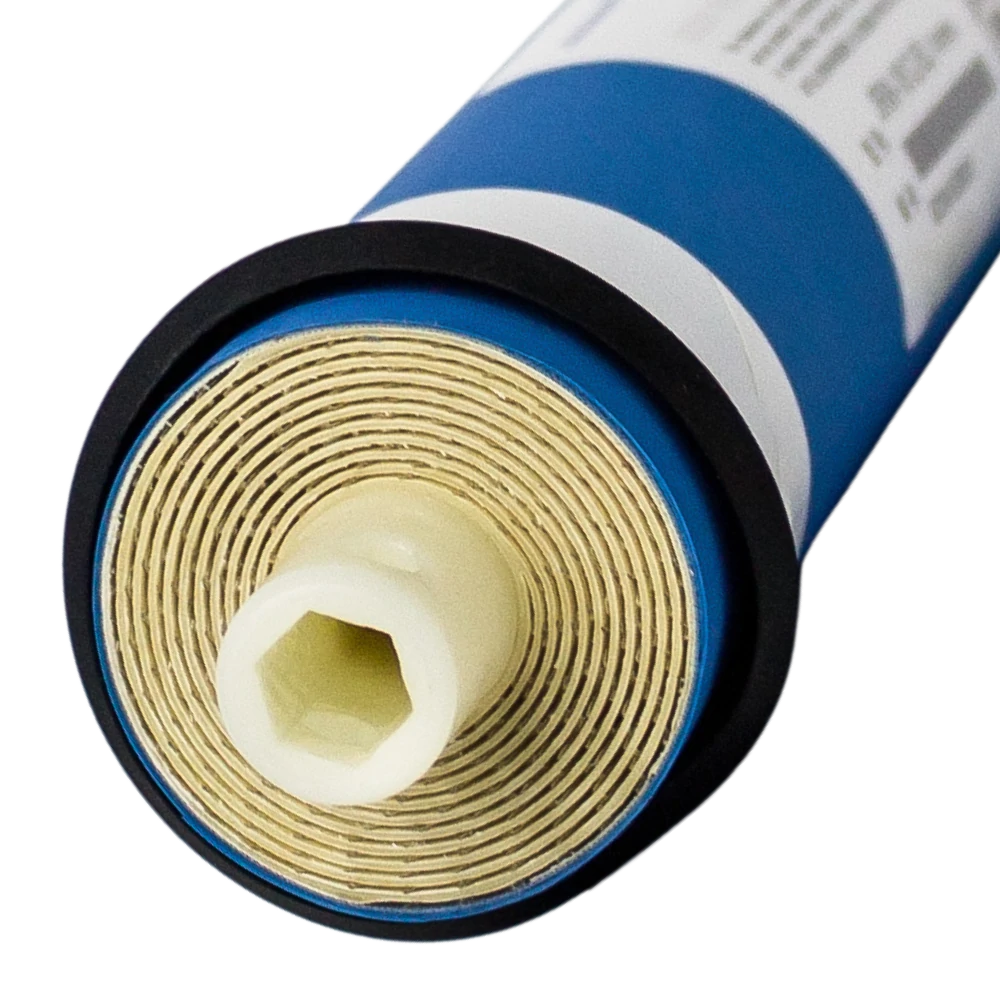

4.Stable Salt Rejection for Pure, Great-Tasting Water
JOZZON residential membranes consistently achieve 95%-98% salt rejection, effectively removing residual chlorine, odors, TDS, and heavy metals. The result is clean, refreshing drinking water with excellent taste.
5.Low Wastewater Ratio – Water Efficient
Through optimized membrane sheet and feed spacer design, JOZZON membranes achieve a low wastewater ratio (e.g., 1:1 to 1:3) while maintaining high water quality, conserving water resources and supporting eco-friendly household use.
6.Quiet Operation & Pump-Free Options
Select ultra-low pressure models operate reliably under low or no pump pressure, minimizing noise from booster pumps. These models are ideal for noise-sensitive home environments and for households with low incoming water pressure.
Available Models
|
Membrane element model |
Stable desalination rate ( % ) |
Water production flow rate GPD (m³ / d) |
Test conditions |
Membrane element model |
||
|---|---|---|---|---|---|---|
|
Test pressure psi (MPa) |
Test solution concentration (ppm) |
Recovery rate (%)Â |
||||
|
JRW-1810-50 |
97.0 |
50(0.2) |
60(0.4) |
250, NaCl |
15 |
JRW-1810-50 |
|
JRW-1812-50 |
97.0 |
50(0.2) |
60(0.4) |
250, NaCl |
15 |
JRW-1812-50 |
|
JRW-1812-75 |
97.0 |
75 (0.28) |
60(0.4) |
250, NaCl |
15 |
JRW-1812-75 |
|
JRW-1812-100 |
96 |
100(0.4) |
60(0.4) |
250, NaCl |
40 |
JRW-1812-100 |
|
JRW-1812-150 |
96 |
150(0.6) |
60(0.4) |
250, NaCl |
40 |
JRW-1812-150 |
Note: Component models not mentioned (membrane performance, appearance dimensions) can be customized according to order quantity.
Extreme Usage Conditions
| Maximum Operating Pressure | 300 psi (2.07 MPa) |
| Maximum Inlet Water Temperature | 45℃ |
| Maximum Influent SDI15 | 5 |
| Influent Free Chlorine Concentration | < 0.1 ppm |
| Influent pH Range During Continuous Operation | 2～12 |
| pH Range of Influent During Chemical Cleaning (Short-term 30-minute) | 1～13 |
| Maximum Pressure Drop of A Single Membrane Element | 10psi (0.07Mpa) |
Test Conditions
| Test Solution Temperature | 25℃ |
| Test Solution pH Value | 7.5 |
Membrane Element Size
The units in the diagram are millimeters (inches).
B=44mm (1.73"), D=25.0mm (0.98"), E=15.0mm (0.59")
B=44mm (1.73"), D=21.0mm (0.83")
